Açılı Ped Yivli Boru Sistemi Boru Bağlantısı
Açılı Ped Yivli Boru Sistemi Boru Bağlantısı, UL/FM/LPCB/VdS
·
·
·

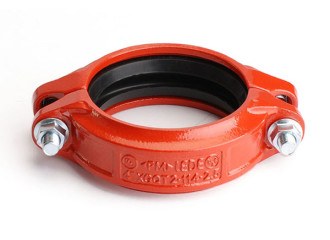

An angle pad coupling is a new pipe connector that uses pressure and a self-tightening sealing ring force produced by medium pressure for a seal. This coupling features a small volume, light weight, and simple structure. Each coupling has only two bolts, which are easy to install and maintain. The installation can be selected at random when for easy operation. This angle pad coupling is especially useful in fire-fighting, gasoline, and water supply, as it is a more convenient and economical solution than traditional welding connections.
Constitute and Working Life
The housing, nuts and bolts can all be used for 50 years, and the sealing ring can be used for 15 years.
Dimension Drawing
Technical Data
ANGLE-PAD COUPLING GKS
Nominal Size mm/in
Pipe O.D mm/in
Dimensions
Bolt
Working pressure Psi
ΦD
L
H
inch/mm
mm
mm
mm
25
33.7
56
96
47
3/8×2-3/8
(M10×60)
300
1
1.327
32
42.4
64
106
47
11/4
1.669
40
48.3
69
113
47
11/2
1.9
50
60.3
88
122
47
2
2.375
65
73
100
137
47
3/8×2-3/4
(M10×70)
21/2
2.875
65
76.1
100
137
47
21/2
3
80
88.9
116
154
47
3
3.5
100
114.3
142
188
52
1/2×3
(M12×75)
4
4.5
125
139.7
170
219
52
1/2×3-1/8
(M12×80)
5
5.5
125
141.3
170
219
52
5
5.563
150
159
196
244
52
6
6.25
150
165.1
197
244
52
6
6.5
150
168.3
199
246
52
6
6.625
200
219.1
262
322
66
5/8×4-3/4
(M16×120)
8
8.625
250
273
325
400
66
3/4×6-7/10
(M20×170)
10
10.75
300
323.9
376
468
67
7/8×7-1/4
(M22×185)
